Every custom WAF rule is built from four parts: a variable that tells the engine where to look in a request, an operator that defines the match condition, optional transformations that normalize the data before comparison, and a response action for matches.

​
The fundamentals

A WAF rule is structured into four main sections, each playing a vital role in the request evaluation process:
  • Variable: This section specifies the parts of the HTTP request that the Rule Engine should examine. By defining a Variable, you instruct the WAF on where to look within the request, such as headers, URIs, or parameters.
  • Operator: Operator defines the condition or logic that triggers a match against the specified Variable (and Variable Value). It determines how the extracted data is compared to a given value, using operations like equality, pattern matching, or range checking.
  • Transformations: Before evaluation, the extracted data can be normalized or transformed for consistent matching, such as converting it to lowercase or stripping whitespace.
  • Response Action: Upon a successful match, Response Action specifies what the WAF should do with the request. Actions can include blocking the request, logging it for analysis, or issuing a challenge to the client.

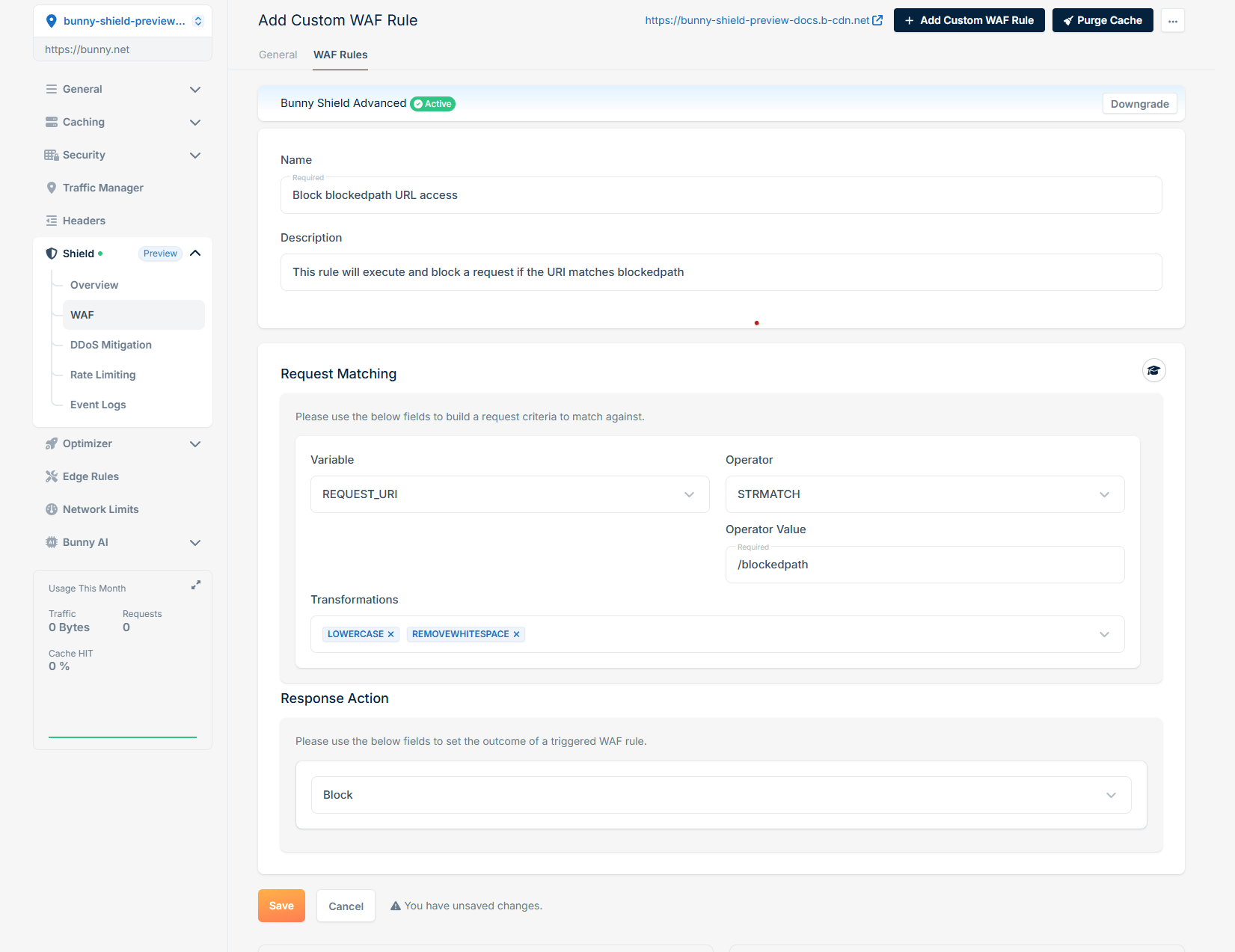

A very basic rule would look like the following: This rule processes each HTTP request by extracting only the REQUEST_URI (Variable), converting it to lowercase, and removing whitespaces (Transformations). It then verifies if the transformed REQUEST_URI matches exactly (Operator) with ‘/blockedpath’ (Operator Value). If a match is found, our WAF Engine will block (Response Action) the request, halting further rule processing and intercepting the request.

​
Variables

Variable define where in the HTTP request the WAF should extract data for evaluation. Each Variable corresponds to a specific element of the request.
  • REQUEST_URI The full URI of the incoming request (e.g., /path/to/resource?query=123).
  • REQUEST_URI_RAW The raw, unprocessed URI, possibly including encoded values (e.g., %2F instead of /).
  • ARGS (Optional Variable Value) All request parameters (both GET and POST).
  • ARGS_COMBINED_SIZE The combined size (in bytes) of all request arguments.
  • ARGS_GET (Optional Variable Value) All query parameters passed via the GET method.
  • ARGS_GET_NAMES (Optional Variable Value) The names (keys) of query parameters in the GET method.
  • ARGS_POST (Optional Variable Value) All request parameters passed via the POST method.
  • ARGS_POST_NAMES (Optional Variable Value) The names (keys) of parameters in the POST method.
  • FILES_NAMES The names of uploaded files in the request.
  • GEO (Optional Variable Value - COUNTRY_CODE, LATITUDE, LONGITUDE, ASN, CITY, CONTINENT, ORGANIZATION) (Advanced) The geo location information of the client making the request. With no Variable Value, returns all components.
  • REMOTE_ADDR The IP address of the client making the request.
  • QUERY_STRING The raw query string of the request (e.g., ?key=value&name=example).
  • REQUEST_BASENAME The base name of the requested file (e.g., index.html).
  • REQUEST_FILENAME The full path of the requested file (e.g., /var/www/index.html).
  • REQUEST_LINE The complete HTTP request line (e.g., GET /index.html HTTP/1.1).
  • REQUEST_METHOD The HTTP method used in the request (e.g., GET, POST, PUT).
  • REQUEST_PROTOCOL The HTTP protocol version (e.g., HTTP/1.1, HTTP/2).
  • REQUEST_COOKIES_NAMES (Optional Variable Value) The names of cookies sent in the request.
  • REQUEST_COOKIES (Optional Variable Value) All cookie key-value pairs sent with the request.
  • REQUEST_HEADERS_NAMES (Optional Variable Value) The names of headers included in the request.
  • REQUEST_HEADERS (Optional Variable Value) All request headers in a key-value pair format.
  • REQUEST_BODY (Premium) The textual payload of the request body.
  • RESPONSE_HEADERS (Optional Variable Value) All response headers sent back to the client.
  • RESPONSE_BODY (Premium) The textual payload of the response body returned by the origin server.
  • RESPONSE_STATUS The HTTP status code returned in the response (e.g., 200 OK, 404 Not Found).
  • FINGERPRINT (Optional Variable Value - JA4_A, JA4_B, JA4_C and any two-letter combination such as JA4_AB) (Premium) The TLS client fingerprint of the request. With no Variable Value, returns the full JA4 string.
  • VERIFIED_BOT_CATEGORY The category assigned by verified-bot detection, e.g. SEO for verified search-engine crawlers, or empty when the client is not a recognized verified bot.

​
Operator

Operator determines the condition under which a match is triggered. It defines how the WAF compares the extracted and transformed data against the specified value.
  • BEGINSWITH Check if a string starts with a specified substring.
  • ENDSWITH Check if a string ends with a specified substring.
  • CONTAINS Check if a string contains a specified substring.
  • CONTAINSWORD Check if a string contains a specific whole word (whitespace-delimited).
  • WITHIN Check if the variable value appears as a substring within the operator value (the inverse of CONTAINS).
  • STRMATCH Substring match against the operator value. Functionally equivalent to CONTAINS.
  • STREQ Check if a string has exact match, case insensitive.
  • EQ Equality check: whether two integers are exactly equal.
  • GE Check if an integer/double is Greater than or equal to.
  • GT Check if an integer/double is Greater than.
  • LE Check if an integer/double is Less than or equal to.
  • LT Check if an integer/double is Less than.
  • RX Regular expression match.
  • DETECTSQLI (Advanced) Detect SQL injection attempts in input.
  • DETECTXSS (Advanced) Detect cross-site scripting (XSS) attempts in input.

​
Transformations

Transformations are applied to the extracted data before evaluation to normalize or modify it, ensuring consistent comparisons.
  • CMDLINE Preprocess input as if it were a command-line string (e.g., handling escape sequences or arguments).
  • COMPRESSWHITESPACE Replace multiple whitespace characters (spaces, tabs, newlines) with a single space.
  • CSSDECODE Decode CSS-encoded input (e.g., %2F in CSS or \00002F encoding).
  • HEXENCODE Encode the input as hexadecimal (e.g., abc → 616263).
  • HTMLENTITYDECODE Decode HTML entities (e.g., &lt; → <, &#x41; → A).
  • JSDECODE Decode JavaScript-encoded strings, such as escape sequences in JS (e.g., \x41 → A).
  • LENGTH Return the length of the input string.
  • LOWERCASE Convert input to lowercase (e.g., Hello → hello).
  • MD5 Hash the input using the MD5 hashing algorithm.
  • NORMALIZEPATH / NORMALISEPATH Normalize file paths by removing redundant parts (e.g., /a/../b → /b).
  • NORMALIZEPATHWIN / NORMALISEPATHWIN Normalize file paths specific to Windows-style paths (e.g., C:\\folder\\..\\file → C:\file).
  • REMOVECOMMENTS Remove comments from input, such as <!-- --> in HTML or /* */ in CSS/JS.
  • REMOVENULLS Remove null bytes (\x00) from the input.
  • REMOVEWHITESPACE Remove all whitespace from the input (e.g., a b c → abc).
  • REPLACECOMMENTS Replace comments in the input with a placeholder or empty string.
  • SHA1 Hash the input using the SHA-1 hashing algorithm.
  • URLDECODE Decode standard URL-encoded input (e.g., %2F → /).
  • URLDECODEUNI Decode URL-encoded input with Unicode normalization (handles double-encoded payloads).
  • UTF8TOUNICODE Convert UTF-8 encoded input to Unicode.

​
Response Actions

Response Actions specifies the action the WAF takes when a rule condition is met.
  • Block Block the request.
  • Log Log the request.
  • Challenge (Advanced) Challenge the request with JS PoW.
