API Guardian

API Guardian uses your OpenAPI specification as the source of truth for what your API accepts. At the edge, every request is validated against the schema, authenticated against the configured security scheme, and counted against per-endpoint rate limits before reaching your origin.

Key Features

Schema-Based Validation: Upload your OpenAPI specification and turn it into enforceable validation rules that run directly at the edge.
Full Request Coverage: Validate path parameters, query strings, headers, cookies, and JSON request bodies against your API contract.
Edge Authentication Enforcement: Enforce API keys, Bearer tokens, OAuth2, and OpenID Connect validation before requests reach your origin.
Response Validation: Ensure responses match your schema to prevent accidental data exposure or inconsistent output.
Per-Endpoint Rate Limiting: Apply granular rate limits aligned with your API structure, including support for dynamic path templates.
Integrated Protection: Combine schema validation with targeted WAF-style inspection for injection attacks on selected parameters.

Schema-driven request validation

API Guardian starts with your OpenAPI schema and transforms it into a real-time enforcement layer at the edge. When a specification is uploaded:

The schema is normalized and processed
Internal references are resolved
Validation rules are compiled into native Bunny Shield protections

Every incoming request is checked against this contract before reaching your origin. Only requests matching your defined API structure are allowed through. Validation includes:

Path parameters to ensure correct structure and types
Query parameters to validate allowed fields and formats
Headers and cookies to enforce required values
JSON request bodies (application/json and *+json) to match schema definitions

Handling non-conforming requests

API Guardian provides two layers of control over how requests that don’t match your schema are handled.

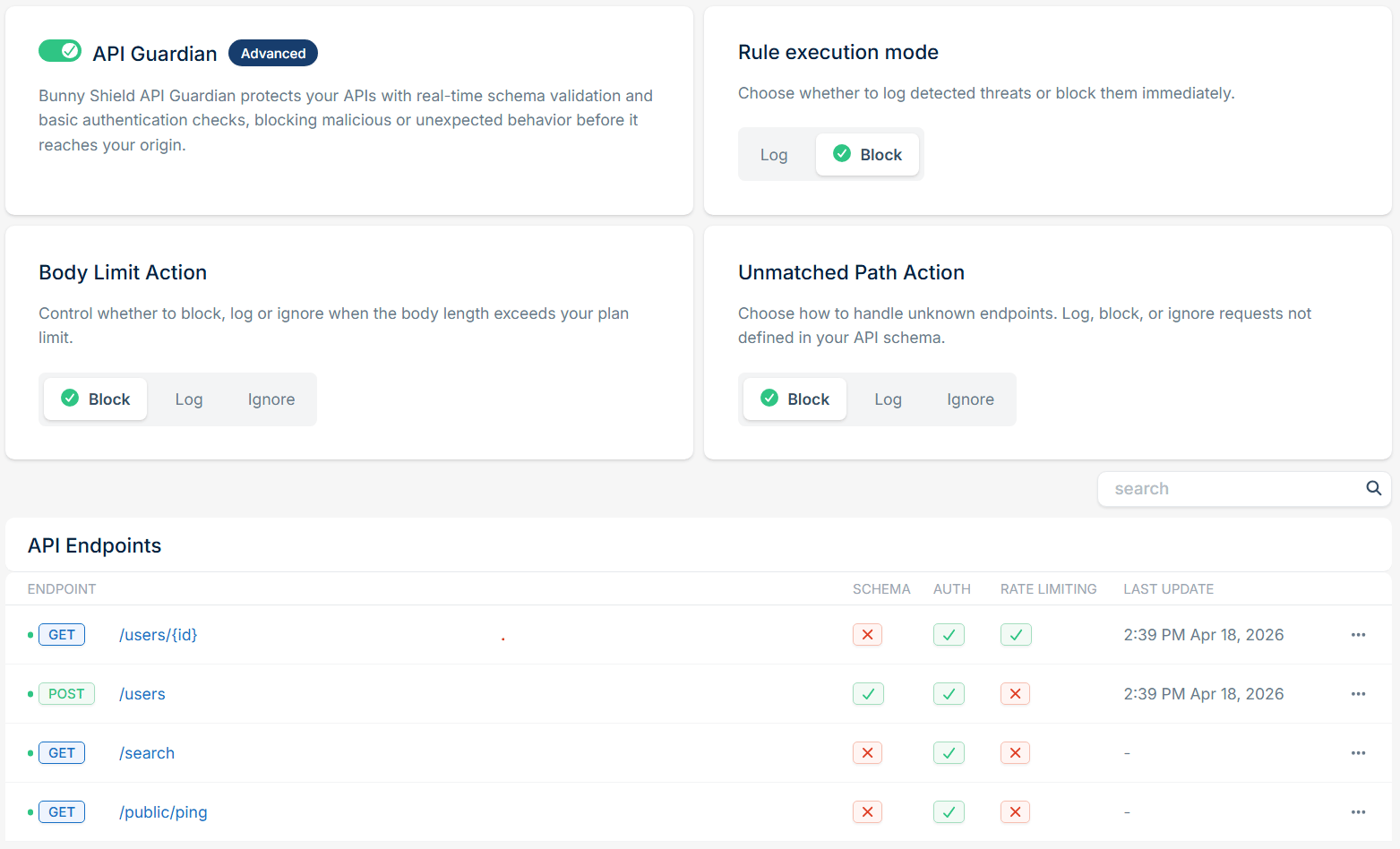

Rule execution mode

Execution mode controls how API Guardian enforces its decisions globally:

Log to observe validation results without blocking traffic
Block to enforce validation decisions at the edge

This setting applies to all validation outcomes and overrides any individual blocking decision, allowing you to safely test API Guardian in log mode before enforcing it.

Unmatched path handling

Not all requests will match a defined path in your schema. The Unmatched Path Action controls how these requests are treated:

Block to reject requests targeting undefined endpoints (subject to execution mode)
Log to record unmatched requests while still forwarding them
Ignore to bypass API Guardian entirely for unmatched paths

Only Ignore lets an unmatched request reach the Managed WAF ruleset; under Block and Log, Managed WAF is skipped. Other Shield features such as Rate Limiting and Bot Detection apply regardless of this setting. Requests that do match a declared path are always handled by API Guardian’s schema validation and path enforcement, instead of the Managed WAF ruleset, to avoid false positives common with structured API traffic.

Authentication-aware path handling

Unmatched path handling is not limited to literal path definitions. API Guardian automatically allows endpoints referenced by your authentication schemes, so login and token-exchange flows work without manual schema duplication. For OpenID Connect:

The provider’s discovery metadata is fetched
Advertised endpoints (authorization, token, userinfo, JWKS, etc.) are automatically allowed
Keys are kept up to date as they rotate

This allows login and token exchange flows to function correctly while still enforcing schema validation across your API.

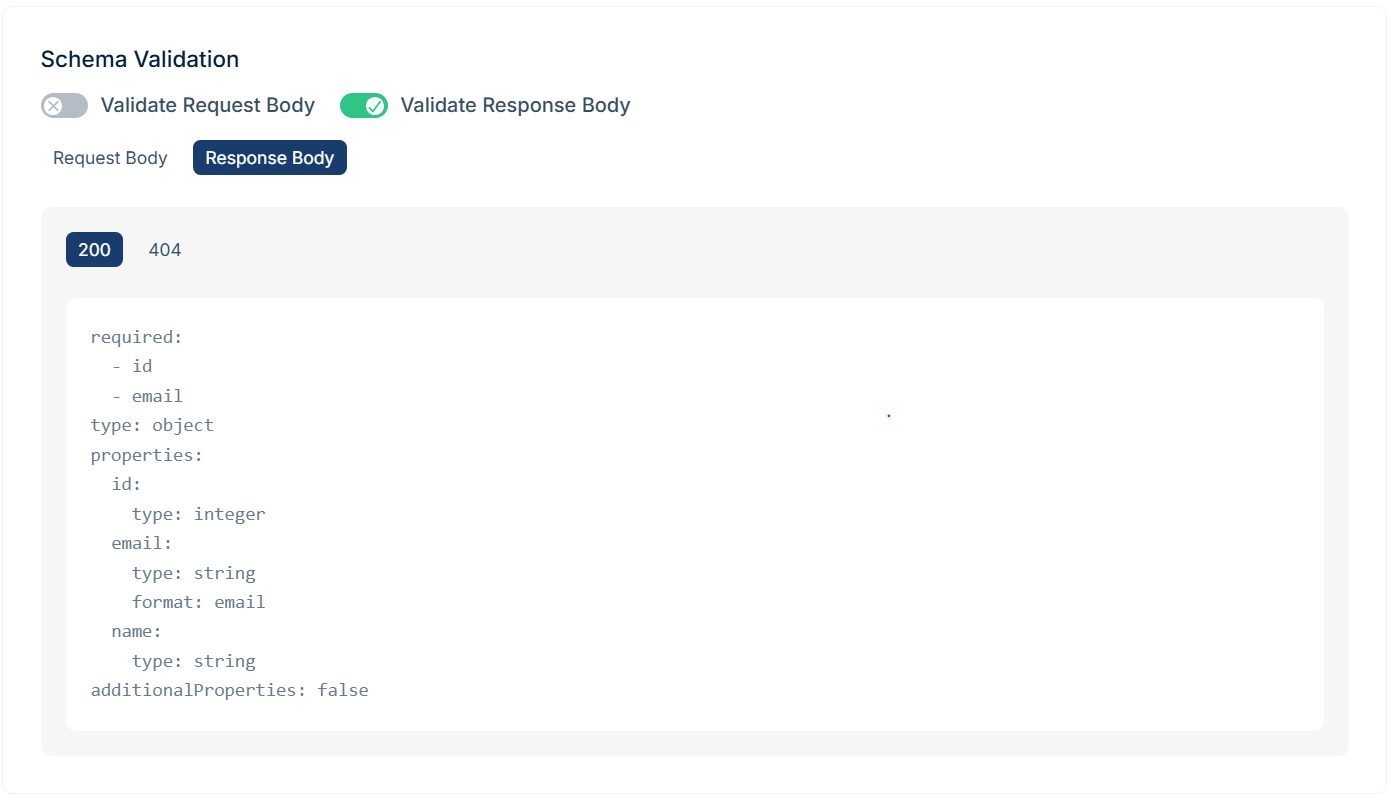

Response validation

APIs don’t just define what they accept, but also what they return. API Guardian can validate responses against your schema on a per-endpoint basis. This helps prevent:

Unexpected fields being exposed
Incorrect response formats
Edge-case behavior leaking unintended data

Responses are validated before leaving your infrastructure, ensuring consistency between your API contract and real-world behavior.

Authentication enforcement at the edge

API Guardian enforces authentication requirements defined in your OpenAPI schema before requests reach your origin. Supported authentication methods include:

API Keys (headers, query parameters, cookies)
HTTP Authentication (Bearer and Basic)
OAuth2
OpenID Connect

Requests missing required credentials are rejected immediately, filtering out a large portion of automated and low-effort attack traffic.

Token validation

For Bearer tokens and OpenID Connect:

JWT structure and expiration are validated for bearerFormat: jwt
Signature verification is performed for OpenID Connect providers using public-key algorithms
JWKS endpoints are automatically fetched and refreshed
Tokens must match the expected issuer and signing algorithm

Supported algorithms include RSA and ECDSA (256, 384, 512-bit). Invalid, expired, unsigned, or tampered tokens are rejected at the edge before reaching your application.

Per-endpoint rate limiting

Not all endpoints behave the same, and API Guardian reflects that. You can define rate limits directly per endpoint:

Supports dynamic paths like /users/{id}
Applies limits at the template level across all variations
Configurable per endpoint or per IP address
Time windows from 1 second to 1 hour

Versioned endpoints (e.g., /v1, /v2) are treated independently, allowing precise control as your API evolves.

Targeted injection protection

Schema validation ensures requests are structurally correct, but some attacks rely on valid structure with malicious content. API Guardian allows you to combine schema enforcement with targeted deep inspection:

Select specific query, path, header, or cookie parameters for inspection
Detect patterns like SQL injection and cross-site scripting (XSS)
Apply deep inspection only where needed, reducing unnecessary overhead

Schema-level inspection with `x-bunny-shield`

You can also define inspection rules directly in your OpenAPI schema using the x-bunny-shield extension. This allows you to attach detection logic to specific fields:

{
  "properties": {
    "comment": {
      "type": "string",
      "x-bunny-shield": "detectxss,detectsqli"
    }
  }
}

Applies to string schema types
Accepts a comma-separated list of detectors (detectxss, detectsqli)
Enables field-level inspection without additional dashboard configuration

Built into the edge pipeline

API Guardian runs natively inside Bunny Shield’s request processing pipeline.

No additional network hops
No external validation services
Minimal latency impact

Validation happens alongside WAF, Bot Detection, and Rate Limiting, ensuring invalid traffic is filtered as early as possible.

Limits and requirements

API Guardian includes safeguards to ensure consistent performance:

Maximum OpenAPI spec size: 2 MB
Limits on schema complexity, nesting depth, and regex usage
Supports OpenAPI 3.0.x specifications

Endpoint limits vary by plan:

Advanced: up to 10 endpoints
Business: up to 50 endpoints
Enterprise: customizable

These limits help focus protection on critical and high-traffic endpoints.

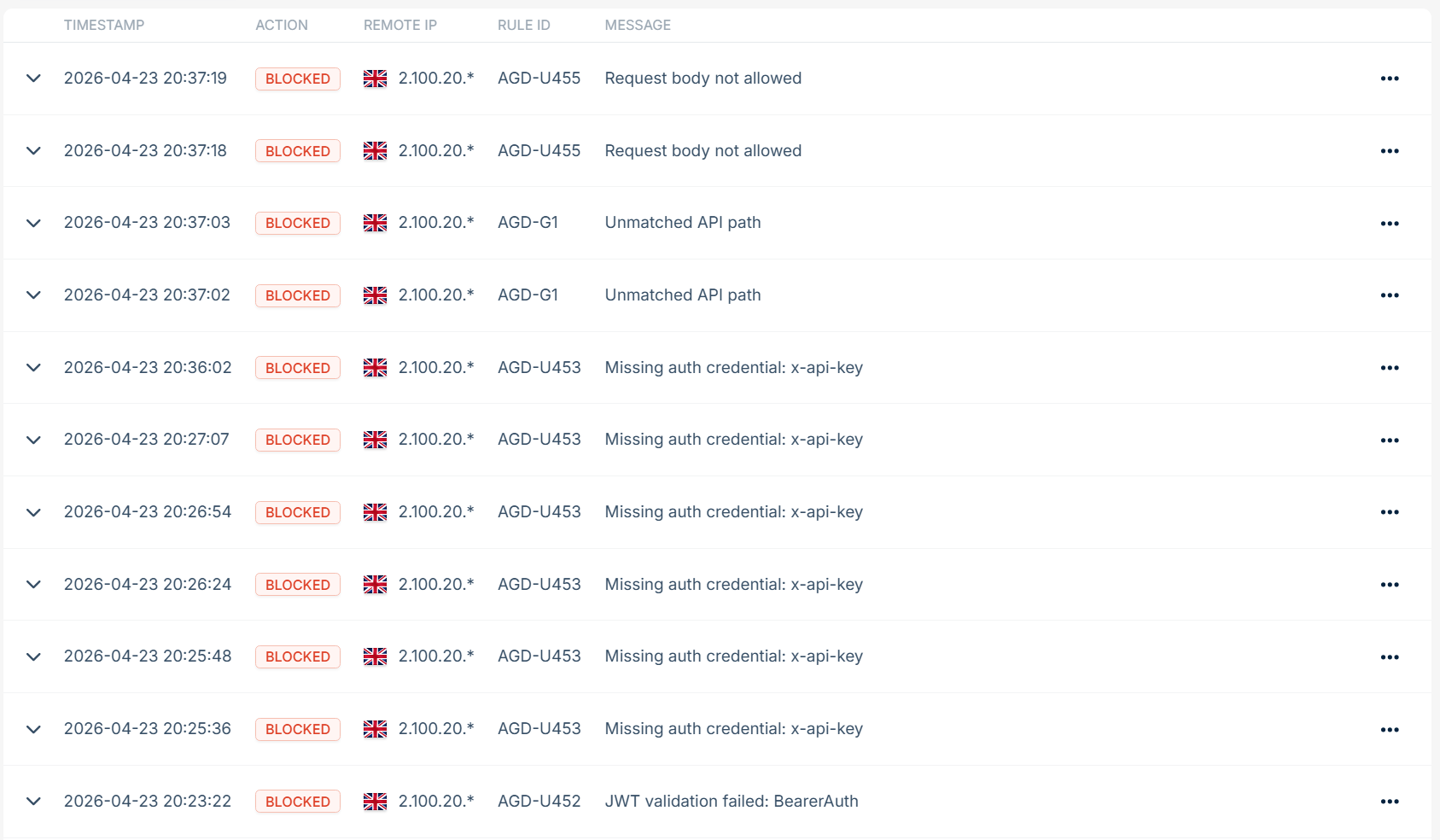

Logging & Observability

API Guardian provides full visibility into validation activity:

Validation events logged for mismatched requests and responses
Clear insight into why a request was flagged or blocked
Integrated into Bunny Shield’s event logs for real-time monitoring

This makes it safe to start in log mode, observe real traffic patterns, and switch to blocking mode once you’re happy with the results.

Configuring via API

You can manage API Guardian configurations through the Bunny Shield API. This allows you to:

Automate schema uploads
Manage validation rules programmatically
Integrate API protection into CI/CD workflows

By treating your OpenAPI schema as the source of truth, API Guardian enables consistent, automated security across all environments.
